1. Docker
   1. Reference
   2. Overview
   3. Docker Commands
   4. Create Customized Image (Dockerfile)
   5. Docker Networking
   6. Docker Storage
   7. Docker Compose
   8. Docker Registry
   9. Docker Engine
   10. Docker on Windows
   11. Docker Orchestration
       1. Docker Swarm’s Brief
       2. Kubernetes’s Brief

Reference

• Docker Tutorial for Beginners - A Full DevOps Course on How to Run Applications in Containers
• Installation Guide

Overview

• [Concept] Docker containers share the underlying OS kernel.

  • docker vs. VM

  	VM	docker
  stack layout	VM(applications, libs, deps, OS) -> Hypervisor -> HW	container(applications, libs, deps) -> docker -> OS kernel -> VM

  So you won’t be able to run a windows container on a docker host with Linux kernel on it.

• [Concept] Docker Hub

Docker Commands

Note:

• a container only lives as long as the process inside it is alive.
• every container gets an internal IP inside docker host assigned by default

docker run <image> # download the image from Docker Hub for the first time
docker run --name <container name> <image>
docker run -d <image> # detach/background mode
docker attach <NAME or ID shown by "ps"> # re-attach a running container

docker run redis:4.0 # ":4.0" is a tag specifying the version.
docker run -i <image name>  # interactive mode(redirect host's stdin)
docker run -t <image name> # sudo terminal
rodocker run -it <image name>

# Execute commands in a docker
docker run ubuntu sleep 5
docker exec <NAME or ID shown by "ps"> <command>

# inspect containter
docker ps
docker ps -a
docker inspect <NAME or ID>

docker stop <NAME or ID shown by "ps">
docker rm <NAME or ID shown by "ps"> # removea stopped or exited container permanently

docker images # list all avaliable images on our hosts
docker pull <image> # only pull the images
docker rmi <image> # remove images; Note that you must stop and delete all dependent containers

# port mapping
docker run -p <external port>:<internal port> <image>
docker run -p 80:5000 webapp

# volume mapping(save persisted data)
docker run -v <volume name>:<internal dir> <image>
docker run -V <complete path>:<interal dir> <image> # old way of bind mount
docker run --mount type=bind,source=<complete path>,target=<internal dir> <image>

# container logs
docker log <NAME or ID>

# environment variables
docker run -e APP_COLOR=blue <name> # pass envrionment variables
docker inspect <NAME or ID> # inspect environment variables

Create Customized Image (Dockerfile)

Typical Routine to set up the environment

• install OS
• update apt repo
• install dependencies using apt
• install application dependencies(like pip in Python)
• copy source code to directory(like /opt)
• run the command

• [Concept] Dockerfile:

  • build each line of instructions in a layered architecture

    if we modifying one of the instructions, only the above the updated layers needs to be rebuilt.

FROM <base OS or another image>

MAINTAINER magicgriffin <maijing3007@qq.com>

RUN <command run in sudo mode>

# copy files from the local system onto the docker image
COPY <dir in host> <dir in image>

USER user # affect following 'RUN', CMD', 'ENTRYPOINT' etc.

# define the default program that will be run within the container
CMD <command> <param1>
CMD ["command", "param1"] # json format

ENTRYPOINT <command> # run the command which appended parametes

# combine "ENTRYPOINT" and "CMD"
ENTRYPOINT sleep
CMD 5 # default parameters

docker build -t <tag name> -f <Dockerfile name> . # create locally
docker build github.com/creack/docker-firefox # build vis URL
docker push <image name> # push image to Docker Registry, like docker hub
docker run --entrypoint <command> <image>
docker history <image name> # inspect the layered architecture

CMD vs. ENTRYPOINT

Recall that a container only lives as long as the process inside it is alive.

• CMD in Dockerfile will define the default program that will be run within the container

  • docker run <image name> <COMMAND> will override the default command

• ENTRYPOINT is like the command instruction that you can specify the program that will be run when the container starts, and appends the parameters.

  • In Dockerfile: ENTRYPOINT sleep; and run docker run ubuntu-sleeper 10
    • to override the entrypoint, leverage the --entrypoint flag.

Docker Networking

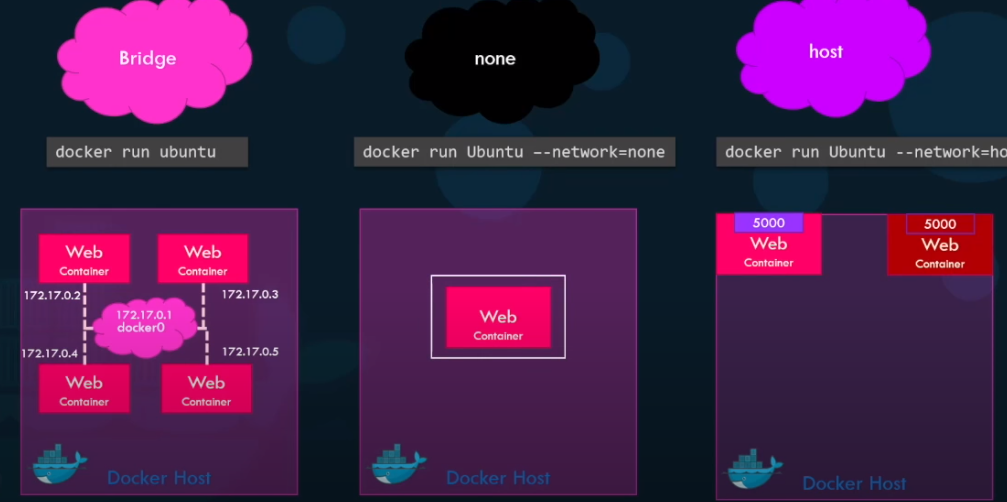

• [Concept] Docker Network

  • (Default Network)Bridge: the default network a container get attached to
  • none: none network
  • host: attach to host network



  • User-defined networks

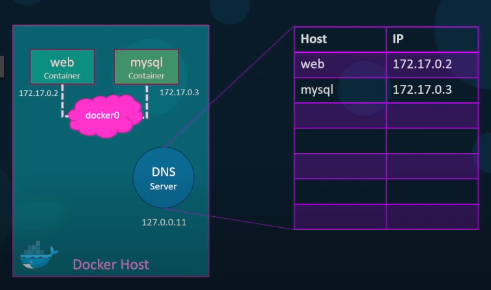

• [Concept] Embedded DNS

  • container name could be used as the hostname



docker run <image> --network=none
docker run <image> --network=host

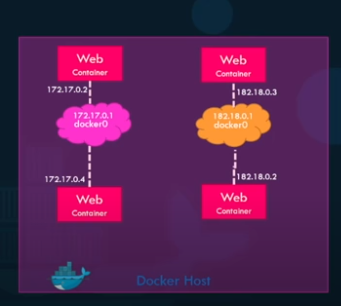

docker network create --driver bridge --subnet 182.18.0.0/16 <customized network name>
docker network ls
docker inspect <container name>

Docker Storage

• Storage location on Host:

  • (Linux) var/lib/docker

    /var/lib/docker
    	/aufs # storage driver on host OS
    	/containers
    	/image
    	/volumes


Recall the layered architecture.

image, container vs volumes

• (image) each layer in a image is read-only
• (container) when you creates a container, it create a new writable layer on top of the image. So, when the container is destroyed, this layer and all the storage are also destroyed.
• (volume) persistent storage

docker volume create <volume name>

# volume mapping(save persisted data)
docker run -v <volume name>:<internal dir> <image>

# bind mount(arbitory mount point on host)
docker run -V <complete path>:<interal dir> <image> # old way
docker run --mount type=bind,source=<complete path>,target=<internal dir> <image>

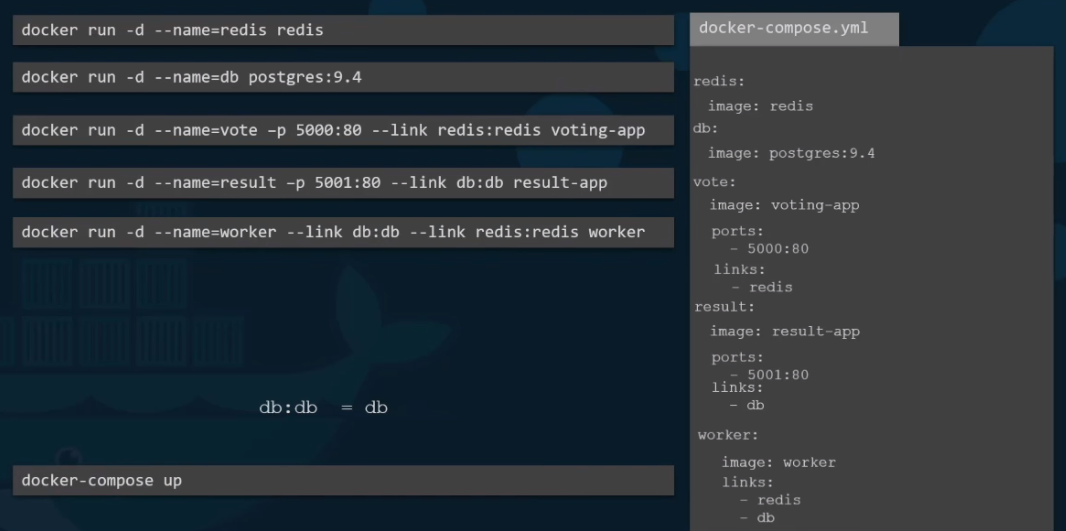

Docker Compose

purpose: set-up an entire containers stack with ease

# old way
docker run --link <internal container name>:<external container name> <image>

# new way
docker-compose up

<container name>:
	build: <a directory whih a Dockerfile in it, from which we can build the container.
	image: <image name>
	ports:
		- <internal port>:<external port>
	link:
		- <another container name>

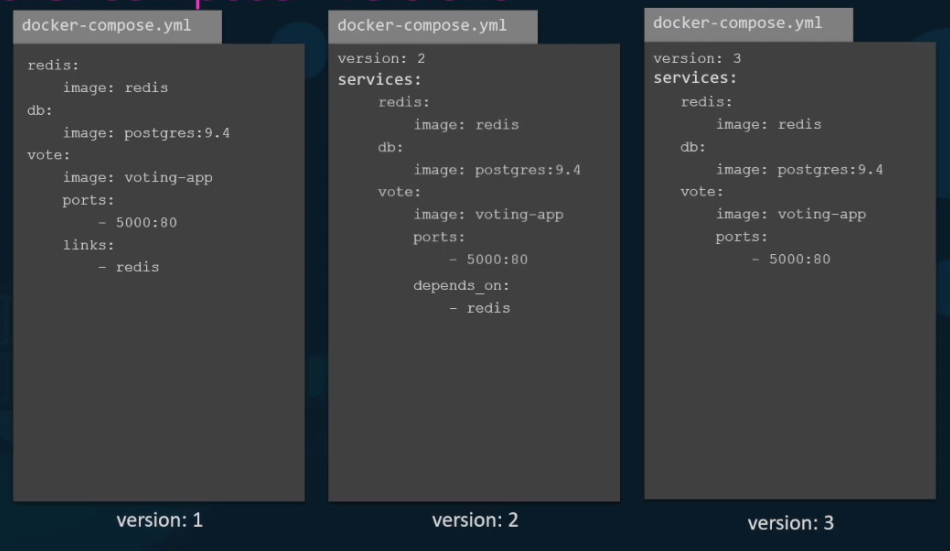

Note that the yaml file formats of different docker compose version vary.

Docker Registry

image identifier: <registry name>/<user name>/<image name>

​ - usual registry name: docker.io(default), gcr.io(google cloud registry)

# private-regristry
docker login <private-registry.io>
ducker run <private-rigsitry.io>/app/internal-app


# deploy private registry
docker run -d -p 5000:5000 --name registry registry:2
docker image tag <image name> localhost:5000/<image name>
docker push localhost:5000/<image name>

Docker Engine

• components of docker engine
  • Docker CLI: could be run on another machine
  • REST API
  • Docker Deamon
• cgroups(control groups): limit the resources used by a containers

docker -H=<remote machine address with docker engine>:2375

docker run --cpus=.5 <image>
docker run --memory=100m <image>

Docker on Windows

• two options to run Linux containers on windows OS(run on Linux VM)
  • docker toolbox: integrate Oracle VirtualBox
  • docker desktop for Windows: run on Microsoft Hyper-V
• Run Windows containers on windows OS
  • two strategies
    • shared kernel
    • Hyper-V isolation(self-own kernel)
  • Based Images
    • Windows Server Core
    • Nano Server

VirtualBox or Hyper-V?

• can’t co-exist!

Docker Orchestration

• [Concept] Docker Orchestration: for the purpose of load balancing
• solutions: docker swarm, kubernetes(google, the most popular), mesos(paget)

  Docker Swarm’s Brief

• stack layout: container(applications, libs, deps) -> multiple docker hosts -> docker swamp -> kernel -> VM
• docker hosts: one is called swarm manager, others are called Node workers

# docker swarm
docker service create --replicas=100 <image name>

Kubernetes’s Brief

• stack layout: containers -> Node -> Cluster(with one master node)
